CAPACITOR DUTY CONTACTORS
Why special Capacitor Duty Contactor?
During the exact moment of switching, a capacitor effectively appears
as short circuit. The magnitude of capacitor in-rush or charging current
will depend upon value of AC Voltage level at instant of switching, together
with impedence of feeders cable & supply transformers.
In case of individual capacitor loads, charging current peaks of upto
30 times the rated capacitor current can occur. Whereas, for multi-stage
capacitor, the in-rush current greater than 180 times the rated capacitor
current can occur.
Such large-current can flow through contactor since initial in-rush current
is taken from both mains-supply & capacitor already connected. As
in-rush current of such high magnitude is undesirable & likely to
weld main contacts of Standard Duty Contactors.
It is, therefore, advisable to
Limit the Current Surge by inserting quick discharge series damping
resistence.
Use Special Capacitor Duty Contactors.
Operating Principal
TC´s new Capacitors Duty Contactors are specially designed to meet Capacitor
Duty applications. Contactor are fitted with block of three early make
auxiliary contacts in series with quick discharge damping six resistors,
2 per phase to limit peak current to value within Contactor making capacity
normal rated capacitor current is carried by main contacts which, after
closing, effectively short out the resistors.
Product Range
Contactors 3P, 415V AC rating 10 KVAR thru 60 KVAR, available in eight
ratings, conforming to IEC - 947 / IS 13947
Benefits
- Conforms to utilization category AC 6B as per IS 13947.
- Saves cost of expensive replacements.
- High electrical life.
- Reduced watt loss during ON condition, saves energy.
- High Safety.
- No risk of dangerous voltage.
- Switching of Capacitor bank in parallel without de-rating.
- Less maintenance & down-time.
Specification
|
Instanteneous
auxiliary contacts
|
|
Electrical life
altated load
|
Basic ref. complete with code including control circuit voltage (2) fixing(1)
|
|
|
|
|
|
|
|
|
|
|
5,5 |
10,0 |
4,5 |
8,0 |
1 |
1 |
240 |
200.000 |
TC1D10K11 |
0 |
2 |
TC1D10K02 |
6,7 |
12,5 |
5,5 |
10,0 |
1 |
1 |
240 |
200.000 |
TC1D12K11 |
0 |
2 |
TC1D12K02 |
8,5 |
16,7 |
7,5 |
13,3 |
1 |
1 |
240 |
200.000 |
TC1D16K11 |
0 |
2 |
TC1D16K02 |
10,0 |
20,0 |
8,5 |
16,7 |
1 |
1 |
240 |
100.000 |
TC1D20K11 |
0 |
2 |
TC1D20K02 |
15,0 |
25,0 |
10,0 |
20,0 |
1 |
1 |
240 |
100.000 |
TC1D25K11 |
0 |
2 |
TC1D25K02 |
20,0 |
33,3 |
15,0 |
25,0 |
1 |
2 |
240 |
100.000 |
TC1D33K12 |
|
25,0 |
40,0 |
20,0 |
30,0 |
1 |
2 |
100 |
100.000 |
TC1D40K12 |
40,0 |
60,0 |
30,0 |
50,0 |
1 |
2 |
100 |
100.000 |
TC1D60K12 |
Note:

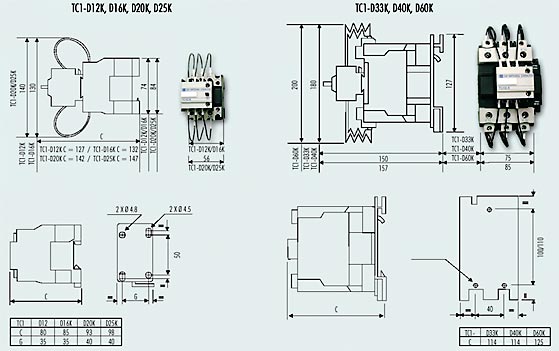

(1) For TC1D12K-TC1D25K clip-on mounting into 35 mm. DIN rail / For TC1D33K-TC1D60K
clip-on mounting into 75 mm. DIN rail
(2) Standard control circuit voltage.
(3) Average temperature over a 24-hour period, in accordance with IEC
70 and 831.
Voltage |
24 |
42 |
48 |
110 |
220 |
230 |
240 |
380 |
400 |
415 |
440 |
500 |
50 Hz |
B5 |
D5 |
E5 |
F5 |
M5 |
P5 |
U5 |
Q5 |
V5 |
N5 |
R5 |
S5 |
60 Hz |
B6 |
D6 |
E6 |
F6 |
M6 |
- |
U6 |
Q6 |
- |
- |
R6 |
- |
50 / 60 Hz |
B7 |
D7 |
E7 |
F7 |
M7 |
P7 |
U7 |
Q7 |
V7 |
N7 |
R7 |
- |
|
